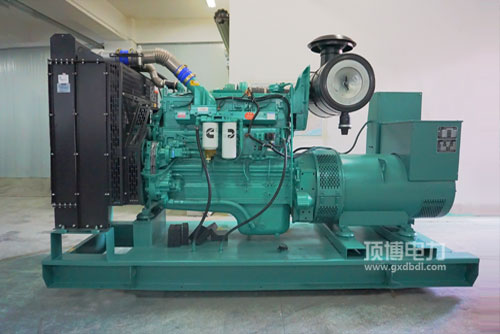

224-310KW康明斯发电用发动机可靠性高：高强度合金铸造缸体、可锻铸铁(FCD) 活塞，刚性更好，降低振动和噪声，提高了发动机适应更高的爆发压力。

High reliability: intensified alloy casting cylinder and Ferrous Cast Ductile (FCD) piston provide engine a better rigidity performance and lower vibration & noise, and also make the engine adapt to higher explosion pressure.

康明斯发电量用汽车发心理柴油性价比性好: 高端的柴油调节来设计，独特的STC、ESTC 等级调节来设计，特出来设计的连杆上端烧室，压力喷射式柴油，有效做雾化，烧有效。

Good fuel economy: Advanced fuel control system, unique STC, ESTC step control system, specilly-designed piston topchamber and high pressure fuel injection lead to an excellent fuel consumption rate and emission performance of engine.

康明斯来发电用汽车发心理瞬态使用性能表现出色: 漂亮的汽车发心理产品 方案，搞好团结康明斯显著的EFC系统性，控制误差高，没有响应时光快。

Excellent transient performance: perfect overall engine design with unique Cummins EFC system, high precision on control and quick response time.

康明斯电站用汽车发行为升电功率高: 布局设置紧密.外观形状安装合理性，运动有序。High lift power: Integrated and compact design, reasonable layout and smooth operation.

电喷网络制式 QSNT. QSK19. QSK38. QSK50符合我国非方向三环节及南美Tier2. Tier 3排放物法规标准规范要求。

Electric fuel injection engines (QSNT,QSK19,QSK38,QSK50) meet the Tier3 emission regulations for China non-road vehicles and Tier2 & Tier3 emission regulations of North America.

零备件管理可获得性好， 打着机开机运行及运营维修保养快速，人工费用少。Good availbility of spare parts, smooth engine operation, convenient engine maintenance and low cost.

发动机规格Engine Specifications

电率依据 Power Range   224-310KW连接结构 Type   直列/六缸/四冲程/四气门  In-ine/6-Cylinder/4-Stroke/4-Valve缸径x冲程 BoreX Stroke  125X 147mm排量 Displacement   11L样貌寸尺 Dimension  长X宽X高(LXWX H) 1360 x 833X 1068 mm净产品质量 Dry Weight   940kg

224-310KW康明斯来发电用打火机的共同点：重量小， 压缩成比较高， 排水槽室内空气热处理加热，更易重启，联通车载电子电原的必选。Compact size, high compression ratio, gile heated by air, easy for start-up, the first option of mobile vehicle power supply.

推荐机型Engine Models Recommended

热车机具体型号	经常使用马力(kW)Prime Power	后备电源效率kW)Standby Power
MTA11-G2	224	246
MTAA11-G3	282	310
